Productomschrijving

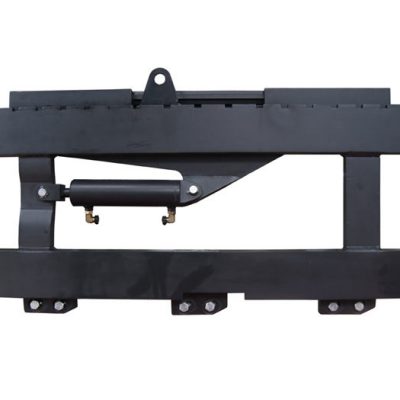

3 Ton forklift attachment Side Shifter (SSS30)
Structure and characteristic
Good field of vision for operator: Combining hydraulic cylinder with attachment part to make space smaller and widen field of vision for operator.
Fast and easy installation: No any extra operation for welding and drilling is required, just quick hook shifter onto fork lift directly.
Uniform side shifting speed: Connecting pole of hydraulic cylinder could be amounted on both sides so makes the attachment move on left and right smoothly and uniformly.
Hydraulic cylinder with high pressure: Cylinder could be worked on 250bar from system. No additional pressure reducer id required.
Long working life of upper sliding supporting: Using brazed material for upper sliding supporting, under normal maintenance the supporting is more wear-resisting, more instensity and toughness, has longer working life.
Videos
Model | Capaciteit/ Laad Center | Opening reeks D | effectief Dikte C | Horizontaal Centrum van zwaartekracht CGH | Gewicht | Verticaal Centrum van zwaartekracht CGV | Arm Lengte L | Arm Hoogte EEN | omlijsting Breedte B | Montage Klasse |
(kg / mm) | (Mm) | (Mm) | (Mm) | (kg) | (Mm) | (Mm) | (Mm) | (Mm) | ||
G09B12-200A26 | 1200/500 | 550-2000 | 184 | 420 | 660 | 300 | 1000 | 1200 | 1140 | 2 |
G09B11-200A46 | 1100/600 | 425 | 675 | 1200 | ||||||
G09B10-200A66 | 1000/700 | 430 | 605 | 1400 | ||||||
G09B16-200A46 | 1600/600 | 550-2000 | 187 | 430 | 725 | 300 | 1200 | 1200 | 1140 | 2 |
G09B15-200A66 | 1500/700 | 460 | 790 | 1400 | ||||||
G09B14-200A86 | 1400/800 | 475 | 815 | 1600 | ||||||
G09B15-200A49 | 1500/600 | 430 | 810 | 305 | 1200 | 1500 |
Basis informatie
Model NO.: SSS30
Gebruik: Heavy Duty Clamp
Standaard: Standaard
Brand: Cascard
Forklift Attachment: Side Shifter
Opening: 550-2000
Horizontal: 420
Transportpakket: zeewaardige verpakking
Origin: Xiamen, China
Materiaal: metaal
Structuur: G Klem
conditie: nieuw
Name: 3 Ton Forklift Attachment Side Shifter (SSS30)
Capacity/: 1200/500
Effective: 184
Handelsmerk: SHYTGER
Specificatie: CE, SGS, ISO
HS-code: 84312090
