Klasse 2 vorkheftruckbevestiging Roterende papierrolklem

Papierrolklem geschikt voor efficiënt, veilig, geen breuk bij het hanteren en stapelen van de papierrol, en klemrol continue 360 graden rotatie, veel gebruikt in papier, karton, verpakking, drukwerk, havens en andere industrieën.

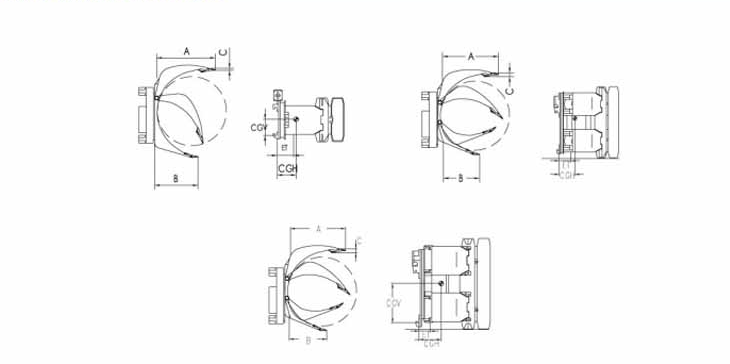

bestek

---

(Kg)	Catalogus	Montageklasse	Rolbereik (mm)	Lange armlengte (mm)	Korte armlengte (mm)	Arm dikte (mm)	Verticaal zwaartepunt (mm)	Horizontaal zwaartepunt (mm)	Effectieve dikte (mm)	Gewicht (kg)
1300	SLZ-A001	2	330-1150	685	515	45	330	216	138	345
1200	SLZ-A002	2	410-1300	790	580	45	330	222	138	345
2000	SLZ-A / B004	2/3	250-1300	824	570	45	345	295/330	210/250	730/748
2000	SLZ-A / B005	2/3	630-1300	824	570	45	345	290/325	210/250	720/738
2000	SLZ-A / B006	2/3	350-1600	956	774	90	345	310/320	210/250	838/848
2000	SLZ-A / B007	2/3	630-1600	956	774	90	345	308/318	210/250	826/834
1700	SLZ-B008	3	680-1830	1130	930	112	345	458	210/250	950
1700	SLZ-B009	3	380-1830	1130	930	112	345	460	210/250	965
2700	SLZ-B / C010	3/4	520-1300	850	590	85	445	270/290	210/250	820/840
2700	SLZ-B / C011	3/4	250-1300	850	590	85	445	270/290	210/250	835/855
2700	SLZ-B / C012	3/4	560-1520	970	690	70	445	305/322	210/250	880/900
2700	SLZ-B / C013	3/4	255-1520	970	690	70	445	305/322	210/250	898/918

Notitie

---

1) Haal de werkelijke uitgebreide draagcapaciteit van vorkheftruck / hulpstuk van de vorkheftruckfabriek

2) Geef naargelang de behoeften van gebruikers spalken om zich aan te passen aan de verschillende vereisten van rolhouder

3) Vereist een vorkheftruck om de extra 1 sets olie te verhogen.

Videos

---

snelle details

---

Plaats van herkomst: Fujian, China (vasteland)
Merknaam: HUAMAI
Gebruik: Glasklem
Materiaal: staal
Structuur: F Clamp
Standaard of niet-standaard: standaard
Productnaam: Klasse 2 vorkheftruckbevestiging roterende papierrolklem
Laadvermogen: 1300kg
Rolbereik: 330-1150 mm
Montageklasse: II
Lange armlengte: 685 mm
Korte armlengte: 515 mm
Arm dikte: 45 mm
Verticaal zwaartepunt: 330 mm
Horizontaal zwaartepunt: 216 mm
Gewicht: 345 kg

---

A Class 2 forklift attachment rotating paper roll clamp is a specialized attachment designed for handling large rolls of paper. The clamp attaches to a Class 2 forklift, which is a forklift with a capacity of up to 4,000 pounds.

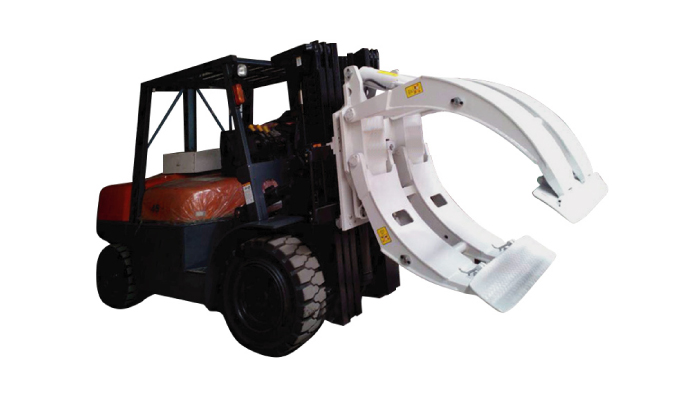

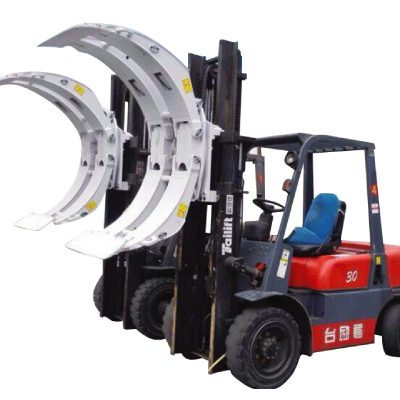

The rotating paper roll clamp consists of two arms that attach to the forks of the forklift and a rotating mechanism in the center. The clamp is designed to securely hold large rolls of paper in place, allowing the operator to easily pick up, move, and place the rolls. The rotating mechanism allows the operator to rotate the rolls to a desired position, making it easier to handle the rolls and reducing the risk of injury and damage to the load and the environment.

One of the main advantages of the Class 2 forklift attachment rotating paper roll clamp is its versatility. It can handle a wide range of large rolls of paper, making it a convenient accessory for a variety of material handling tasks. The rotating mechanism also allows the operator to easily place the rolls in the desired position, reducing the risk of injury to the operator and other workers.

Another advantage of the Class 2 forklift attachment rotating paper roll clamp is its efficiency. The clamp makes it easier to handle and transport the rolls, reducing the time and effort required to complete the task. This makes it more cost-effective and time-efficient, saving companies time and money in the long run.

In conclusion, the Class 2 forklift attachment rotating paper roll clamp is a useful tool for handling and transporting large rolls of paper. It is versatile, efficient, and cost-effective, and is an essential tool for companies that handle heavy loads on a regular basis.
